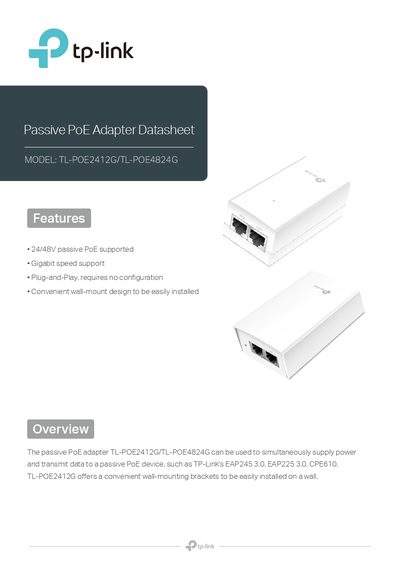

The TP-Link TL-POE2412G/TL-POE4824G Passive PoE Adapter datasheet provides features, specifications, and dimensions for the 24 V and 48 V models.
The Passive PoE Adapter supports 24 V or 48 V passive PoE, offers Gigabit Ethernet speed, and is plug‑and‑play with no configuration required. It includes a wall‑mount design for easy installation and can power TP‑Link passive PoE devices such as EAP225, EAP245, and CPE series.
Key specifications include output voltage and power (24 VDC 12 W, 48 VDC 24 W), RJ45 ports with auto‑negotiation, dimensions of 3.4×1.7×1.4 in (TL‑POE2412G) and 4.3×2.3×1.5 in (TL‑POE4824G), and operating temperature range 0 °C–40 °C. The adapters are FCC, CE, and RoHS certified and ship with power cords and wall‑mount kits.
| Supported PoE voltages | 24 V / 48 V passive PoE |
|---|---|
| Output voltage (TL‑POE2412G) | 24 VDC (Max 12 W) |
| Output voltage (TL‑POE4824G) | 48 VDC (Max 24 W) |
| Dimensions (TL‑POE2412G) | 3.4 × 1.7 × 1.4 in (85.8 × 43.9 × 35 mm) |
| Dimensions (TL‑POE4824G) | 4.3 × 2.3 × 1.5 in (110 × 57 × 38.8 mm) |
| Operating temperature | 0 °C ~ 40 °C |
| Storage temperature | -40 °C ~ 70 °C |
| Operating humidity | 10 % ~ 90 % non‑condensing |
| Certifications | FCC, CE, RoHS |
| Package contents | Adapter, power cord, wall‑mount kits |
The TL‑POE2412G supports 24 VDC passive PoE with a maximum power of 12 W.
The TL‑POE4824G measures 4.3 × 2.3 × 1.5 in (110 × 57 × 38.8 mm).
No configuration is needed; the adapter is plug‑and‑play.
