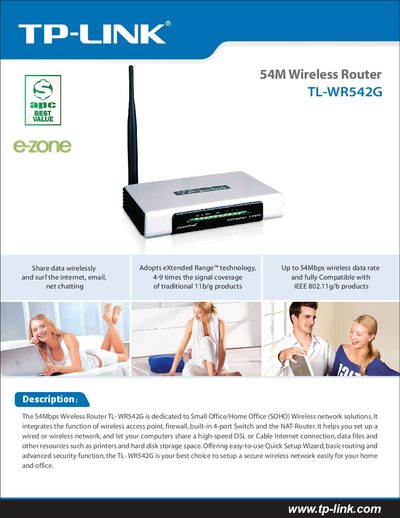

The 54Mbps Wireless Router TL-WR542G is dedicated to Small Office/Home Office (SOHO) Wireless network solutions. It integrates the function of wireless access point, firewall, built-in 4-port Switch and the NAT-Router. It helps you set up a wired or wireless network, and let your computers share a high-speed DSL or Cable Internet connection, data files and other resources such as printers and hard disk storage space. Offering easy-to-use Quick Setup Wizard, basic routing and advanced security function, the TL-WR542G is your best choice to setup a secure wireless network easily for your home and office.
This manual covers the TL-WR542G wireless router, a SOHO solution that integrates a wireless access point, firewall, 4‑port switch and NAT router. It explains how to configure the device using the Quick Setup Wizard and describes its advanced security and routing features.
The document also lists technical specifications such as supported wireless standards, port types, antenna details, power requirements, operating temperature ranges, and dimensions, helping users understand the router's capabilities and environmental limits.
| LAN Port | 410/100M auto‑sensing (Auto MDI/MDIX) |
|---|---|
| WAN Port | 10/100M auto‑sensing (Auto MDI/MDIX) |
| Wireless Signal Rates (802.11g) | 54/48/36/24/18/12/9/6 Mbps (dynamic) |
| Wireless Signal Rates (802.11b) | 11/5.5/2/1 Mbps (dynamic) |
| Frequency Band | 2.4‑2.4835 GHz |
| Wireless Transmit Power | 17 dBm (MAX) |
| Antenna | 3 dBi detachable omni‑directional |
| Modulation (802.11b) | DOPSK, DBPSK, DSSS, CCK |
| Modulation (802.11g) | BPSK, QPSK, 16QAM, 64QAM, OFDM |
| Receiver Sensitivity (S4M) | -68 dBm @10% PER |
| Power Supply | 9 VAC / 0.8 A linear PSU |
| Operating Temperature | 0 °C to 40 °C (32 °F‑104 °F) |
| Storage Temperature | -40 °C to 70 °C (-40 °F‑158 °F) |
| Relative Humidity | 10 %‑90 % non‑condensing |
| Dimensions | 174 × 111 × 30 mm |
Use the built‑in Quick Setup Wizard to configure basic settings and connect to the internet.
It supports IEEE 802.11b and IEEE 802.11g wireless standards.
The router provides up to 54 Mbps wireless data rate.
It uses a 9 VAC / 0.8 A linear power supply.
