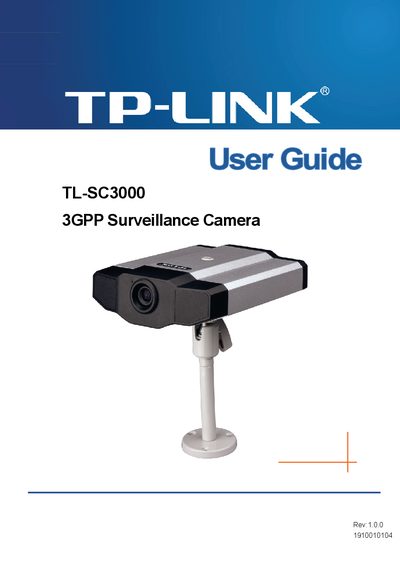

TL-SC3000 3GPP Surveillance Camera
The TL‑SC3000 is a network‑based digital surveillance camera with a built‑in web server, supporting TCP/IP, H.264, MPEG4 and MJPEG video streams. It offers low‑latency streaming, hybrid digital/analog output, motion detection, and 3GPP support for remote monitoring.
This guide covers package contents, hardware overview, installation steps, IP configuration, video viewer software usage, web browser access, mobile device monitoring, and includes appendices with user level permissions, default settings, and recording tables.
| LAN Port | YES |
|---|---|
| LAN Speed | 10/100 Based‑T Ethernet |
| Frame Rate | NTSC:30fps, PAL:25fps |
| Number of Online Users | 10 |
| Image Sensor | 1/3.6" image sensor |
| Pixels | 640(H) x 480(V) |
| Lens | f3.6mm |
| F‑number | F2.0 |
| Viewing Angle | 80° | 55.6° |
| Shutter Speed | 1/60 to 1/100,000 sec |
| Minimum Illumination | 1 Lux / F2.0 |
| Power | DC12V, 1A |
| Operating Temperature | 0~40°C |
| Dimensions (L×W×H) | 152.5 x 115.2 x 40.2 mm |
| Shipping Weight | 812g (1.79 lbs) |
The camera supports up to 10 online users.
It requires a DC12V, 1A power source.
The camera measures 152.5 mm × 115.2 mm × 40.2 mm (L × W × H).
