Instant Gigabit Network Adapter (32-bit) is a high performance PCI local bus computer network adapter that offers unprecedented speed. It boasts an incredible maximum data throughput of 2000 megabits per second in full duplex mode and includes a 10BaseT/100BaseTX/1000BaseTX port, which means that you can begin integrating Gigabit now--even if you don't plan on upgrading to a 1000Mbps network right away. The Instant Gigabit Network Adapter is Windows Plug-and-Play compatible. The card also runs on most operating systems, including Windows 2000. Wake-On-LAN support is built in--you can wake up your workstations from anywhere on the network! Built-in support for the widest range of PCI motherboards, networking hardware, and software means you don't have to worry about compatibility.
The Linksys EG1032 is a 32‑bit PCI gigabit network adapter designed for desktop computers. It offers up to 2000 Mbps full‑duplex throughput, Wake‑On‑LAN support, VLAN and IEEE 802.1Q priority queuing, and diagnostic LEDs for easy troubleshooting.

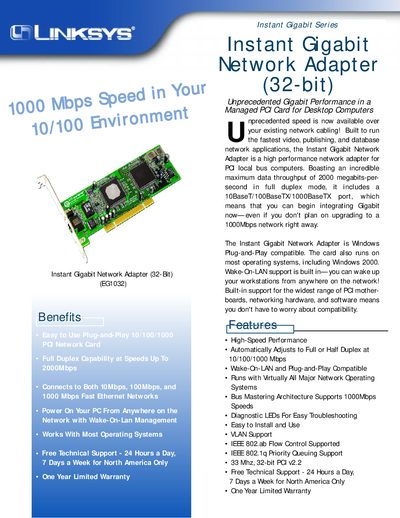

This manual describes the adapter’s benefits, key features, technical specifications, package contents, certifications, dimensions, power requirements, and contact information for technical support. It also includes guidance on installation, configuration, and troubleshooting.
| Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.1p, IEEE 802.1Q, PCI 2.1, PCI 2.2, ACPI |
|---|---|
| Port | 1 RJ-45 10BaseT/100BaseTX/1000BaseT (Auto‑Senses Speed and Duplex) |
| Speed (Full Duplex) | 20 Mbps, 200 Mbps, 2000 Mbps |
| WOL Support | Remote Wake‑Up Power Management Event (PME) |
| Dimensions | 5" x 6.8" x .75" (127 mm x 173 mm x 19 mm) |
| Power Consumption | 5 W Maximum |
Yes, it includes Remote Wake‑Up Power Management Event (PME) for Wake‑On‑LAN functionality.
The card runs on most operating systems, including Windows 2000.
The adapter can achieve up to 2000 megabits per second in full‑duplex mode.
