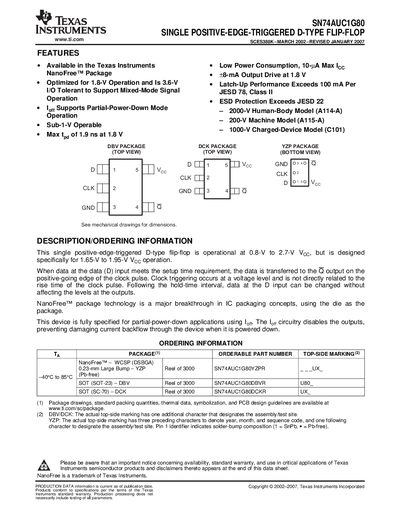

This document describes the features and characteristics of the SN74AUC1G80 single positive-edge-triggered D-type flip-flop. The flip-flop is designed for operation at 1.65V to 1.95V and features low power consumption, high output drive capability, and noise immunity.
The SN74AUC1G80 flip‑flop operates from 0.8 V to 2.7 V (optimised for 1.65 V‑1.95 V) and offers up to +8 mA output drive at 1.8 V. It features NanoFree™ package technology, partial‑power‑down mode, and ESD protection exceeding JESD‑22. The device is supplied in several NanoFree™ packages such as WCSP (YZP), SOT‑23 DBV and SOT‑23 DCK, each with a standard reel quantity of 3000.
The datasheet provides absolute maximum ratings, recommended operating conditions, timing and switching characteristics, and mechanical drawings. Packaging information includes tape‑and‑reel dimensions, moisture‑sensitivity level, and eco‑plan classifications (Pb‑Free, Green). An important notice at the end outlines warranty, liability, and usage restrictions for safety‑critical, military, aerospace, and automotive applications.
| Supply voltage range | -0.5 V to 3.6 V |
|---|---|
| Output drive current (1.8 V) | +8 mA |
| Maximum fall time (t_f) at 1.8 V | 1.9 ns |
| Operating temperature range | -40 °C to 85 °C |
The device can be powered from –0.5 V up to 3.6 V.
The flip‑flop can source up to +8 mA at a 1.8 V output.
The recommended operating temperature is –40 °C to 85 °C.
