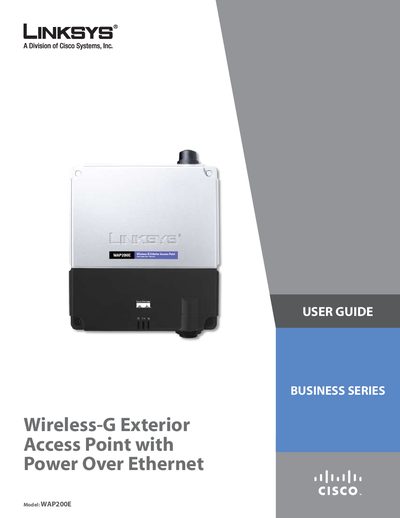

This User Guide introduces the features, usage and precautions of the Linksys WAP200E Wireless-G Exterior Access Point.
The Linksys WAP200E Wireless‑G Exterior Access Point provides outdoor Wi‑Fi coverage and can be powered via Power over Ethernet. It supports 802.11g/b wireless, multiple SSIDs, VLANs, and security features such as WEP and WPA.
The guide explains installation, configuration through the web‑based utility, LED status indicators, antenna options, and troubleshooting. It also includes regulatory and warranty information.
| Power LED | Green LED lights up when the Access Point is powered on |
|---|---|
| Wired LED | Green LED lights up when Ethernet connection is active |
| Wireless LED | Green LED lights up when the wireless module is active |
| Built‑in Antenna | 1x2 MIMO 9dBi directional antennas |
| External Antenna Port | N‑type port for optional high‑gain antenna (e.g., HGA9N) |
| Power over Ethernet | Can be powered via PoE or a PoE injector (48 VDC output) |
The green Power LED lights up when the Access Point is powered on.
The green Wired LED lights up when the Access Point is successfully connected to a device through the Ethernet port.
Yes, the antenna port accepts an optional high‑gain external antenna such as the HGA9N.
Yes, it can be powered via PoE or a PoE injector.
