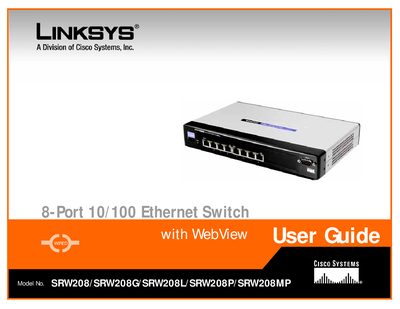

This is the user guide for the 8-port 10/100 Ethernet Switch with model number SRW208/SRW208G/SRW208L/SRW208P/SRW208MP.
This guide introduces the Linksys SRW208 family of WebView switches, covering hardware overview, front and back panel descriptions, and mounting options. It explains how to connect power and network cables and provides placement recommendations for wall‑mount or rack installations.
The manual then details configuration methods, including console access with HyperTerminal, Telnet sessions, and the web‑based utility. Subsequent chapters cover VLAN creation, port management, link aggregation, QoS settings, security features such as ACLs and 802.1x, multicast, SNMP, and administrative tasks like firmware upgrades, backups, and factory resets. Appendices contain technical specifications, regulatory information, and contact details.
Use HyperTerminal to connect to the switch’s serial port and follow the console configuration steps.
Open a web browser and connect to the switch’s IP address to launch the Web‑based Utility.
The guide includes VLAN Management tabs such as Ports to VLAN, VLAN to Ports, and GVRP.
