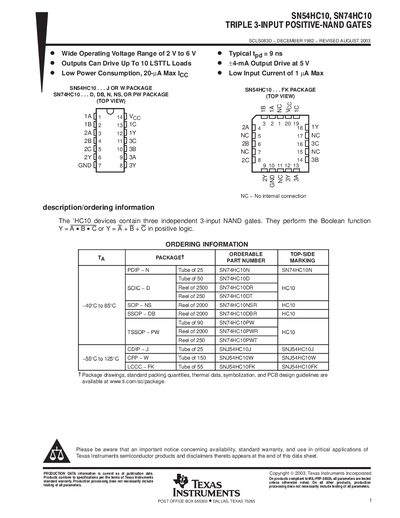

The SN54HC10 and SN74HC10 are three-input NAND gates with a wide operating voltage range of 2V to 6V, outputs that can drive up to 10 LSTTL loads, low power consumption, typical tpd of 9ns, and output drive of ±4mA at 5V with an input current of 1µA.
The SN54HC10 is a 3‑input NAND gate that operates over a wide voltage range of 2 V to 6 V and can drive up to 10 LSTTL loads. It features low power consumption (20 µA max ICC) and typical propagation delay of 9 ns.
The document provides absolute maximum ratings, recommended operating conditions, electrical and switching characteristics, as well as detailed packaging, tape‑and‑reel and mechanical data for various package types.
| Operating voltage range | 2 V to 6 V |
|---|---|
| Maximum output drive | 10 LSTTL loads |
| Maximum supply current (ICC) | 20 µA |
| Typical propagation delay (tpd) | 9 ns |
| Storage temperature range | −65 °C to 150 °C |
The device operates from 2 V up to 6 V.
It can drive up to 10 LSTTL loads.
Typical propagation delay is 9 ns.
The device can be stored from –65 °C to 150 °C.
