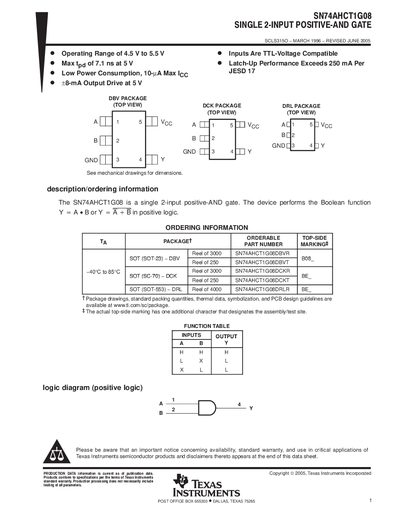

The document describes the SN74AHCT1G08, which is a single 2-input positive-AND gate. The device performs the Boolean function Y = A • B or Y = A + B in positive logic. It has an operating range of 4.5V to 5.5V, a maximum propagation delay of 7.1ns, and a maximum static current of 10μA.
The SN74AHCT1G08 is a single 2‑input positive‑AND gate that implements the Boolean function Y = A·B in positive logic. It operates from a 4.5 V to 5.5 V supply, accepts TTL‑level inputs, and provides up to +8 mA output drive at 5 V while consuming only about 10 µA.
The device is offered in several surface‑mount packages (DBV, DCK, DRL) with detailed mechanical drawings, thermal impedance data, and recommended operating conditions. Ordering information, reel quantities, and packaging material specifications are provided, along with standard warranty and safety notices.
| Supply voltage (VCC) | 4.5 V to 5.5 V |
|---|---|
| High‑level input voltage (VIH) | 2 V |
| Low‑level input voltage (VIL) | 0.8 V |
| Output low‑level voltage (VOL) | 0 V |
| Output high‑level voltage (VOH) | VCC (≈5 V) |
| Output drive current | +8 mA at 5 V |
| Power consumption (Icc) | 10 µA max |
| Package thermal impedance (DBV) | 66 °C/W |
Supply voltage 4.5 V to 5.5 V, VIH ≥ 2 V, and VIL ≤ 0.8 V.
The device can source or sink up to +8 mA at a 5 V supply.
