sn54als00a is an integrated circuit with four independent 2-input positive-nand gates produced by texas instruments. it can be used in the temperature range of 0°c to 70°c.

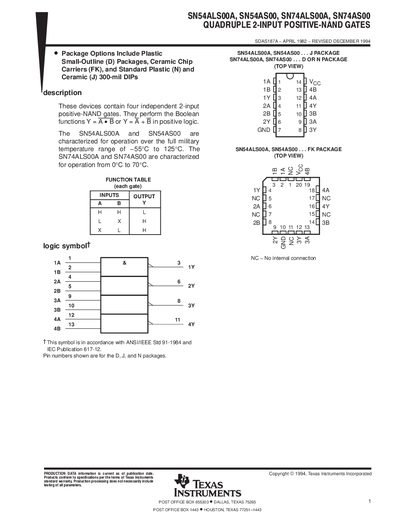

The document provides detailed specifications for the SN54ALS00A, SN54AS00, SN74ALS00A, and SN74AS00 series of quadruple 2‑input positive‑NAND gates. It includes absolute maximum ratings, recommended operating conditions, electrical characteristics, and typical parameter measurements.
Additional sections cover package option addenda, material and mechanical data, and an important notice about product warranties and usage restrictions. The information is intended for designers and engineers selecting these logic devices for new designs or existing applications.
| High‑level input voltage (VIH) | 2 V |
|---|---|
| Low‑level input voltage (VIL) | 0.8 V |
| High‑level output current (I_OH) | -0.4 mA |
| Low‑level output current (I_OL) | 4 mA to 8 mA |
VIH is 2 V and VIL is 0.8 V.
