The FBR160 Series Power Relay is a relay product from Omron. It uses 12 VDC or 24 VDC coils and has three current ratings of 3A, 5A and 10A. It can be used in home appliances and automotive electronics.
The FBR160 Series relays are compact power relays with 1 A‑10 A ratings, offered in several contact materials for home electronics and automotive applications. They meet UL 114, UL 508, CSA and Japanese safety standards and are designed for automatic assembly with tube packaging.

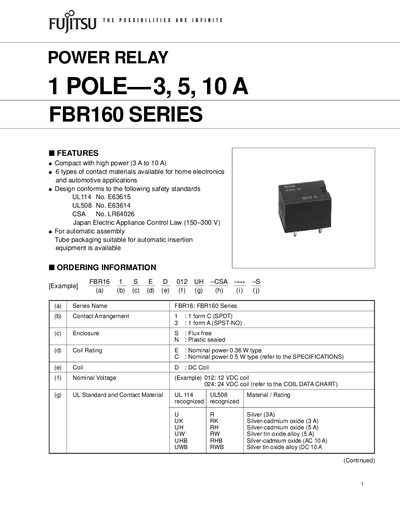

The document lists detailed electrical specifications, coil types, dimensions, and reference data such as maximum switching power, operating temperature range, insulation resistance, and mechanical life. Ordering information, part numbers and contact arrangements are also provided.
| Nominal Voltage | 12 VDC or 24 VDC |
|---|---|
| Coil Nominal Power | 0.36 W (E type) / 0.5 W (C type) |
| Maximum Carrying Current | 5 A – 10 A |
| Maximum Switching Power | 360 VA (3 A) – 1 200 VA (10 A) |
| Operating Temperature | -30 °C to +80 °C |
| Insulation Resistance (initial) | ≥ 100 MΩ at 500 VDC |
| Maximum Switching Voltage | 250 VAC or 125 VDC |
| Weight | ≈ 11 g |
The nominal coil voltage is 12 VDC for the 012 model and 24 VDC for the 024 model.
It operates from –30 °C up to +80 °C.
