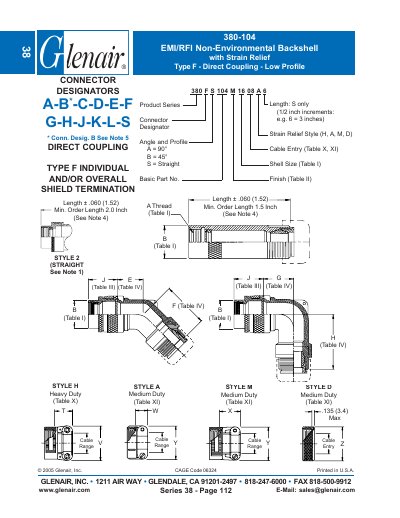

This document is about the technical parameters of 380-104 EMI/RFI Non-Environmental Backshell with Strain Relief Type F - Direct Coupling - Low Profile
The Series 38 EMI/RFI non‑environmental backshells from Glenair provide low‑profile shielding with strain‑relief type F and direct coupling. They are designed for a range of cable sizes and connector configurations.
Key specifications include multiple shell size options, various surface finishes, and detailed cable‑entry dimensions. The document lists part numbers, dimensional tolerances, and finish selections to aid in product selection and integration.
| Part Number | 380-104 |
|---|---|
| Shell Size options | 08/09, 10/11, 12/13, 14/15, 16/17, 18/19, 20/21, 22/23, 24/25, 28/29, 32/33, 36/40 |
| Finish options | Cadmium Plate, Olive Drab; Electroless Nickel |
| Maximum cable entry (mm) | 0.780 (19.8) |
The backshell is offered in sizes 08/09, 10/11, 12/13, 14/15, 16/17, 18/19, 20/21, 22/23, 24/25, 28/29, 32/33, and 36/40.
Finishes include Cadmium Plate with Olive Drab and Electroless Nickel.
The part number is 380-104.
