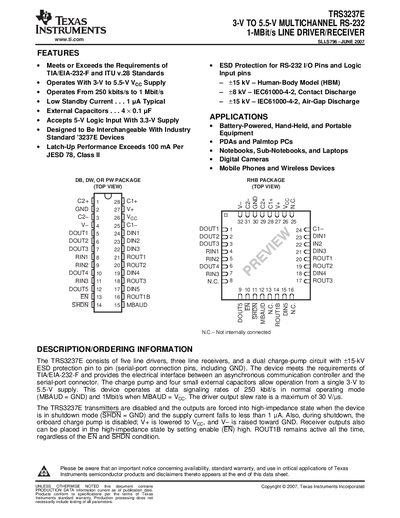

TRS3237E is a multi-channel RS-232 1-MBit/s line driver/receiver from TI. It meets or exceeds the requirements of TIA/EIA-232-F and ITU v.28 standards, and has ESD protection, low power consumption and flexible interfaces
The TRS3237E is a 3‑V to 5.5‑V multichannel RS‑232 line driver/receiver that integrates five line drivers, three line receivers, and a dual charge‑pump with +15‑kV ESD protection. It supports data rates from 250 kbit/s up to 1 Mbit/s and offers a maximum output slew rate of 30 V/µs.
The device is offered in several surface‑mount packages (SSOP‑DB, SOIC‑DW, TSSOP‑PW, QFN‑RHB) with ordering options for temperature‑graded variants (0 °C‑70 °C and –40 °C‑85 °C). Electrical characteristics such as supply current, output voltage levels, and ESD ratings are detailed in the datasheet, along with mechanical drawings and TI’s standard warranty notice.
| Output slew rate | 30 V/µs (max) |
|---|---|
| Line drivers / receivers | 5 drivers, 3 receivers |
| Operating temperature (TRS3237EC) | 0 °C to 70 °C |
| Operating temperature (TRS3237EI) | -40 °C to 85 °C |
| Package options | SSOP‑DB, SOIC‑DW, TSSOP‑PW, QFN‑RHB |
It contains five line drivers and three line receivers.
TRS3237EC is rated for 0 °C‑70 °C, while TRS3237EI is rated for –40 °C‑85 °C.
