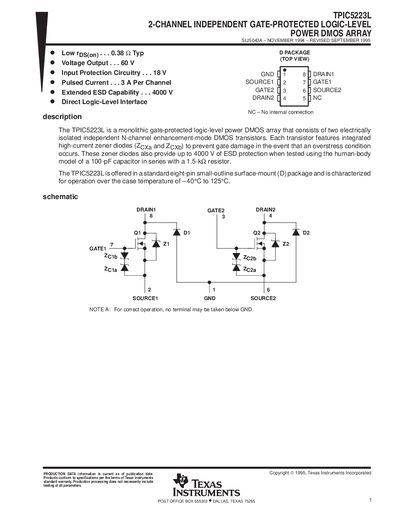

The TPIC5223L is a monolithic gate-protected logic-level power DMOS array that consists of two electrically isolated independent N-channel enhancement-mode DMOS transistors.
The TPIC5223L is a monolithic 2‑channel independent gate‑protected logic‑level power DMOS array. Each channel is an N‑channel enhancement‑mode DMOS transistor with integrated high‑current zener diodes that protect the gate and provide up to 4000 V ESD capability.
The datasheet lists absolute maximum ratings, detailed electrical characteristics, typical switching behavior, mechanical dimensions, and thermal data. It includes test circuits, waveforms, and a notice about product warranties and revisions.
| Pulsed drain current per channel | 3 A |
|---|---|
| Extended ESD capability | 4000 V |
The device can handle a pulsed drain current of 3 A per channel.
It provides up to 4000 V of ESD protection when tested with the human‑body model.
