This document describes the design and specifications of the product, including temperature range, rated voltage, capacitance range, capacitance tolerance, dissipation factor, etc. The product is designed for applications where high density insertion of components is required and offers high volumetric efficiency and excellent electrical characteristics. It is recommended for general purpose usage and noise suppression for logic circuits.

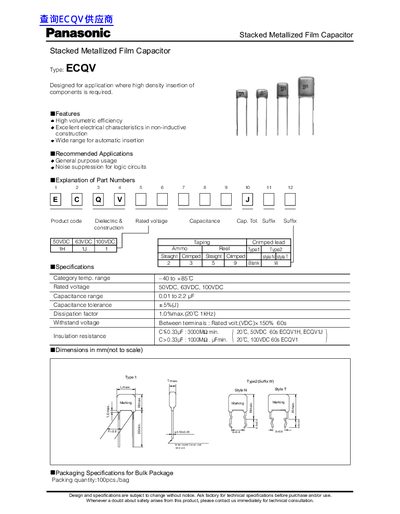

The handbook describes Panasonic's ECQV series stacked metallized film capacitors, highlighting their high volumetric efficiency, non‑inductive construction, and suitability for general‑purpose and noise‑suppression applications. It includes part‑number explanations, rating tables, and recommended packaging and taping styles for automatic insertion.
Technical data such as rated voltage, capacitance range, tolerance, dissipation factor, temperature range, and insulation resistance are listed, along with guidelines for safe use and contact information for technical consultation.
| Rated voltage | 50VDC, 68VDC, 100VDC |
|---|---|
| Capacitance range | 0.01 to 2.2 pF |
| Capacitance tolerance | +5% (J) |
| Dissipation factor | 1.0% max (20°C, 1kHz) |
| Withstand voltage | Rated voltage ×150% for 60 s |
| Bulk packaging quantity | 100 pieces per bag |
The series is offered with rated voltages of 50 VDC, 68 VDC, and 100 VDC.
The capacitance tolerance is +5 % (J class).
Each bulk bag contains 100 pieces.
