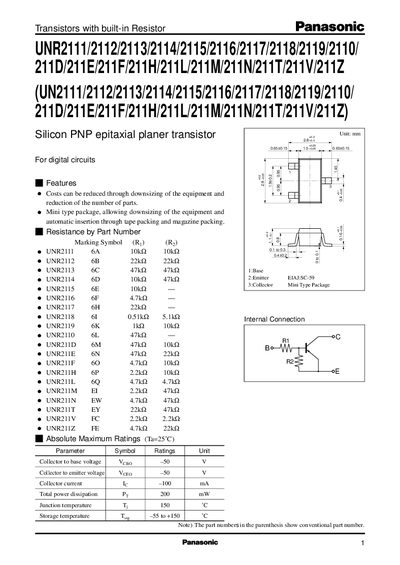

The document introduces a series of transistors UNR2111/2112/2113/2114/2115/2116/2117/2118/2119/2110/211D/211E/211F/211H/211L/211M/211N/211T/211V/211Z with built-in resistors, suitable for digital circuits. Costs can be reduced through downsizing of the equipment and reduction of the number of parts. The mini type package allows downsizing of the equipment and automatic insertion through tape packing and magazine packing.
The UNR2111 series are silicon PNP epitaxial planar transistors with an integrated resistor, offered in a mini‑type SC‑59 package for easy automated assembly. They are intended for standard electronic equipment such as office, communications, measuring instruments and household appliances.
The datasheet lists absolute maximum ratings, detailed electrical characteristics, and characteristic charts for each part number. It also includes legal and export notices required for semiconductor products from Japan.
| Collector‑to‑base voltage (Vcbo) | -50 V |
|---|---|
| Collector‑to‑emitter voltage (Vceo) | -50 V |
| Collector current (Ic) | -100 mA |
| Total power dissipation (Pd) | 200 mW |
| Maximum junction temperature (Tj) | 150 °C |
| Storage temperature range | -55 °C to +150 °C |
| Package type | Mini Type Package (SC‑59) |
The maximum collector current is -100 mA.
They are supplied in a Mini Type Package (SC‑59).
