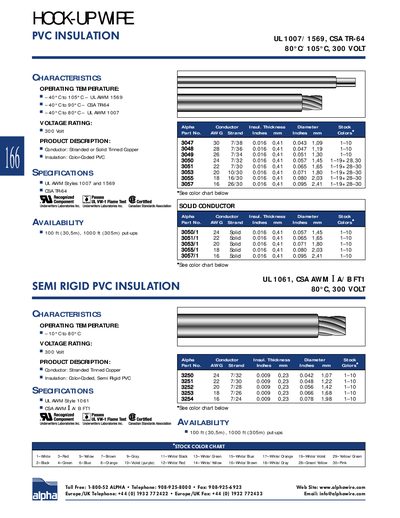

Alpha 166 hook-up wire is available in PVC and semi-rigid PVC insulation in 1-19 AWG sizes and 1-10 colors.
This datasheet provides the technical specifications for Alpha wire certified to UL 1007/1569 and CSA TR-64 standards. It lists operating temperature ranges, voltage rating, conductor material, insulation type, and dimensional data for various AWG sizes.
The document includes tables of strand counts, dimensions in inches and millimetres, color‑coded PVC insulation, available stock lengths (100 ft and 1000 ft), and certification references such as UL AWM 1007, UL AWM 1569, and CSA TR‑4.
| Operating temperature range (UL 1007) | 40°C to 105°C |
|---|---|
| Operating temperature range (CSA TR‑4) | 40°C to 90°C |
| Operating temperature range (UL 1007) | 40°C to 80°C |
| Voltage rating | 300 Volt |
| Insulation type | Semi‑rigid PVC |
| Conductor material | Stranded or Solid Tinned Copper |
The UL 1007 wire is rated for 40 °C to 105 °C.
Alpha wire is rated for 300 Volt.
The wire uses semi‑rigid PVC insulation.
Available lengths are 100 ft (30.5 m) and 1000 ft (305 m).
