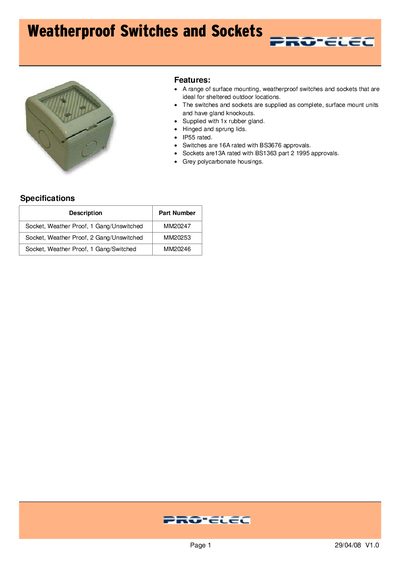

This data sheet contains detailed information about three products: MM20247, MM20253 and MM20246. It includes product models, product functions, product features, product sizes, product images, etc.
Pro‑Elec provides a range of surface‑mount, weatherproof switches and sockets designed for sheltered outdoor locations. The units are supplied complete with rubber glands, hinged and sprung lids, and grey polycarbonate housings.
All switches are 16 A rated with BS3676 approval, while sockets are 13 A rated with BS1363 part 2 1995 approval. The products carry an IP55 rating and are offered with various part numbers for 1‑gang unswitched, 2‑gang unswitched, and 1‑gang switched configurations.
| IP rating | IP55 |
|---|---|
| Switch current rating | 16 A |
| Socket current rating | 13 A |
| Housing material | Grey polycarbonate |
| Rubber gland supplied | 1 x |
| Lid type | Hinged and sprung |
They are rated IP55.
Switches are rated at 16 A and sockets at 13 A.
Switches have BS3676 approval; sockets have BS1363 part 2 1995 approval.
