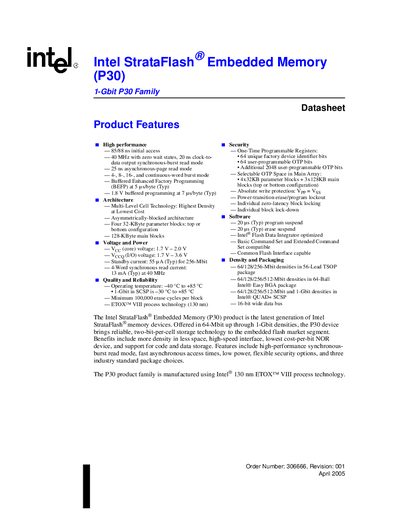

Intel StrataFlash® Embedded Memory (P30) 1-Gbit P30 Family Datasheet is the latest generation of Intel embedded flash memory devices. The product features high density, high speed, low cost, support for code and data storage, and reliable security options.
The StrataFlash P30 family offers 64‑, 128‑, 256‑, 512‑ and 1‑Gbit densities using multi‑level cell technology and a 130 nm ETOX™ VIII process. It delivers high‑performance read modes, low power consumption, and flexible security options for embedded applications.
Key specifications include 85/88 ns initial access, 40 MHz operation with zero wait states, voltage ranges of 1.7‑2.0 V (core) and 1.7‑3.6 V (I/O), and standby current as low as 55 µA (typ). The devices are available in 56‑Lead TSOP, 64‑Ball Easy BGA, and Intel QUAD+ SCSP packages, with extensive command sets and security features such as OTP registers and block locking.
| Initial access time | 85/88 ns |
|---|---|
| Maximum clock frequency | 40 MHz |
| Core voltage (VCC) | 1.7‑2.0 V |
| I/O voltage (VIO) | 1.7‑3.6 V |
| Standby current (256‑Mbit) | 55 µA typ |
| Available densities | 64/128/256/512‑Mbit |
| Package options | 56‑Lead TSOP, 64‑Ball Easy BGA, Intel QUAD+ SCSP |
The device operates from 40 °C to +85 °C.
Core voltage (VCC) is 1.7‑2.0 V and I/O voltage (VIO) is 1.7‑3.6 V.
Typical standby current is 55 µA for a 256‑Mbit part.
The family is offered in 56‑Lead TSOP, 64‑Ball Easy BGA, and Intel QUAD+ SCSP packages.
