This is an article about P85C220-10

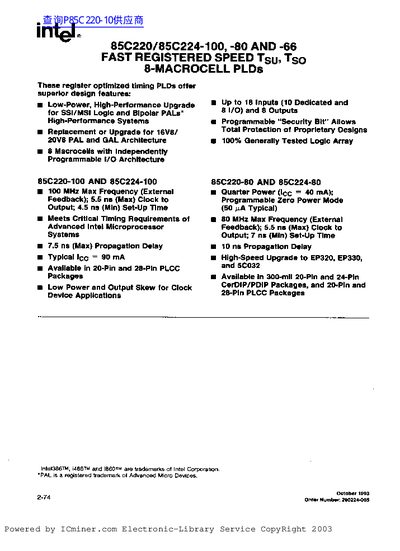

The Intel 85C220 and 85C224 are 8‑micron CHMOS programmable logic devices offering up to 300 equivalent gates, 8 macrocells, and flexible I/O architecture. They are intended as high‑speed upgrades for SSI/MSI logic, bipolar PALs, and GAL devices in Intel microprocessor‑based systems.
Key features include maximum operating frequencies of 100 MHz (‑100) and 80 MHz (‑80), low power consumption (typical Icc ≈ 90 mA), up to 18 inputs and 8 outputs, and availability in 20‑pin, 24‑pin PDIP/CerDIP and 20‑pin/28‑pin PLCC packages. The devices provide low output skew (<300 ps) and programmable security bits for design protection.
| Maximum Frequency (‑100 variant) | 100 MHz |
|---|---|
| Maximum Frequency (‑80 variant) | 80 MHz |
| Typical Power Consumption | 90 mA |
| Quarter Power Mode Current | 40 mA |
| Power‑Up Reset Time (max) | 1000 ns |
| Junction‑to‑Ambient Thermal Resistance (CerDIP) | 68 °C/W |
The 85C220‑100 can operate up to 100 MHz.
Typical supply current is about 90 mA.
