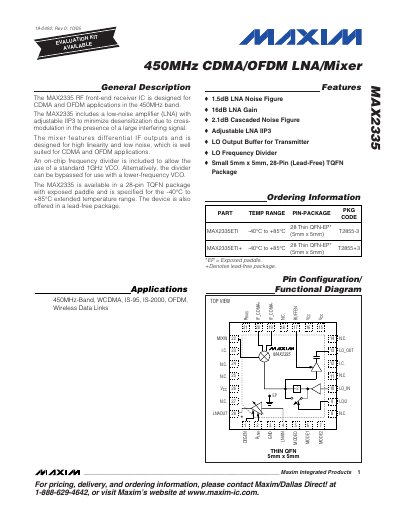

The MAX2335 is a 450MHz RF front-end receiver IC designed for CDMA and OFDM applications. It includes a low-noise amplifier (LNA) with adjustable IIP3 to minimize desensitization due to cross-modulation in the presence of a large interfering signal. The mixer features differential IF outputs and is designed for high linearity and low noise, which is well suited for CDMA and OFDM applications. An on-chip frequency divider is included to allow the use of a standard 1GHz VCO. Alternatively, the divider can be bypassed for use with a lower-frequency VCO. The MAX2335 is available in a 28-pin TQFN package with exposed paddle and is specified for the -40°C to +85°C extended temperature range. The device is also offered in a lead-free package.
The MAX2335 is a 450 MHz RF front‑end receiver IC designed for CDMA and OFDM applications. It integrates a low‑noise amplifier with adjustable IIP3 and a differential mixer, and includes an on‑chip frequency divider for use with a 1 GHz VCO.
The device is supplied in a 28‑pin thin QFN package (5 mm × 5 mm) with an exposed paddle, and operates over an extended temperature range of –40 °C to +85 °C. Detailed electrical characteristics, pin descriptions, and layout recommendations are provided for designers.
| LNA Noise Figure | 1.5 dB |
|---|---|
| LNA Gain | 16 dB |
| Operating Temperature Range | -40 °C to +85 °C |
| RF Frequency Range | 420 MHz to 470 MHz |
The device is specified to operate from –40 °C up to +85 °C.
The low‑noise amplifier has a typical noise figure of 1.5 dB.
The MAX2335 operates over an RF frequency range of 420 MHz to 470 MHz.
