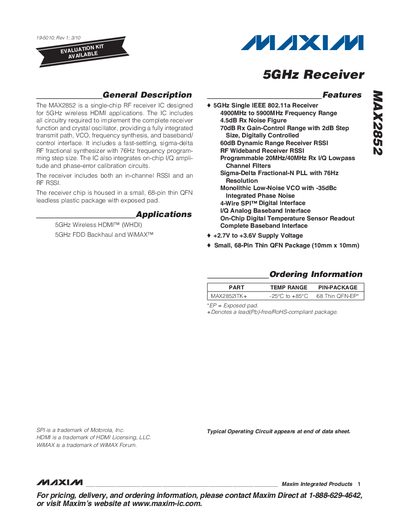

The MAX2852 is a single-chip RF receiver IC designed for 5GHz wireless HDMI applications. The IC includes all circuitry required to implement the complete receiver function and crystal oscillator, providing a fully integrated transmit path, VCO, frequency synthesis, and baseband/ control interface. It includes a fast-settling, sigma-delta RF fractional synthesizer with 76Hz frequency programming step size. The IC also integrates on-chip I/Q amplitude and phase-error calibration circuits. The receiver includes both an in-channel RSSI and an RF RSSI. The receiver chip is housed in a small, 68-pin thin QFN leadless plastic package with exposed pad.
The MAX2852 is a single‑chip 5 GHz RF receiver IC designed for wireless HDMI and Wi‑MAX applications. It integrates a sigma‑delta fractional‑N PLL, on‑chip I/Q amplifiers, and a digital SPI interface, all in a 68‑pin thin QFN package.
The document includes detailed absolute maximum ratings, DC and AC electrical characteristics, timing specifications, typical operating circuit diagrams, and ordering information, along with revision history.
| Frequency Range | 4900 MHz to 5900 MHz |
|---|---|
| Rx Noise Figure | 4.5 dB |
| Rx Gain‑Control Range | 70 dB (2 dB steps) |
| Supply Voltage (VCC) | 2.7 V to 3.6 V |
| Operating Temperature Range | -25 °C to +85 °C |
| Digital Interface | 4‑Wire SPI™ |
The device operates from a supply voltage of 2.7 V to 3.6 V.
The MAX2852 operates from –25 °C up to +85 °C.
The receiver covers 4.9 GHz to 5.9 GHz.
