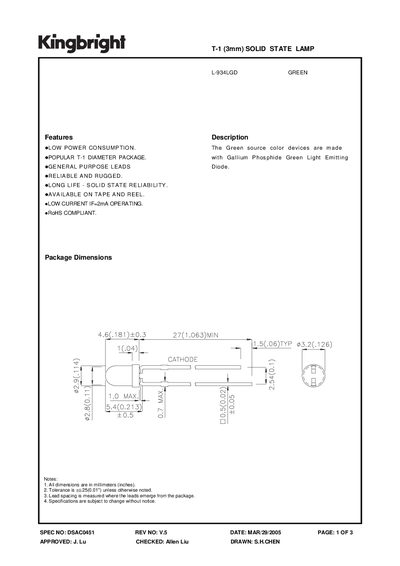

This document is the specification of L-934LGD GREEN. It mainly introduces the dimensions, characteristics, electrical/optical characteristics, absolute maximum ratings and other information of this product.
The L-934LGD is a 3 mm green solid‑state lamp (LED) from Kingbright, offered in tape and reel packaging. It is designed for low‑power consumption applications and complies with RoHS.
The datasheet lists key parameters such as a peak wavelength of 565 nm, typical forward voltage of 2.2‑2.5 V at 20 mA, and a maximum power dissipation of 105 mW. Mechanical dimensions, lead spacing, and recommended soldering temperatures are also provided for designers.
| Peak Wavelength | 565 nm |
|---|---|
| Capacitance | 15 pF |
| Forward Voltage (IF=20 mA) | 2.2‑2.5 V |
| Reverse Current (VR=5 V) | 10 µA |
| Power Dissipation | 105 mW |
| DC Forward Current | 25 mA |
| Peak Forward Current | 140 mA |
| Operating Temperature Range | -40 °C to +85 °C |
| Lead Solder Temperature | 260 °C for 3 s (or 5 s) |
The typical forward voltage is between 2.2 V and 2.5 V at a forward current of 20 mA.
The peak wavelength is 565 nm.
The device can dissipate up to 105 mW.
Lead soldering should be done at 260 °C for 3 seconds (or 5 seconds for a longer dwell).
