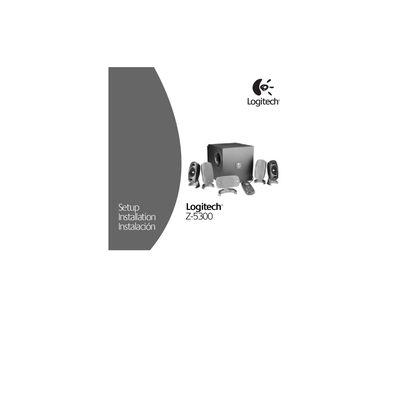

This Z-5300 manual describes the function features of Z-5300, including installation, safety, etc.
This manual begins with important safety information and detailed installation guidance for the Logitech Z‑5300 speaker system, covering placement of the subwoofer and satellite speakers, wall‑mounting options, and proper cable connections for PCs and game consoles. It also explains how to use the SoundTouch™ wired remote control to adjust volume, bass, fader, and matrix surround sound.
The document includes a full set of technical specifications such as total RMS power, frequency response, driver sizes, and dimensions, as well as the two‑year limited warranty terms and service instructions.
| Total RMS Power | 280 Watts |
|---|---|
| Satellite RMS Power | 180 watts RMS (2 × 35.25 W Front, 2 × 35.25 W Rear, 39 W Center) into 8 Ω at 1 kHz, 10% THD |
| Total Peak Power | 560 Watts at <10% THD |
| System THD | Better than 0.05% before clipping |
| Signal‑to‑Noise Ratio | >85 dB |
| Frequency Response | 35 Hz – 20 kHz |
| Driver Size | 2.5" aluminum phase‑plug satellites, 6.5" band‑pass subwoofer |
| Satellite Dimensions | 8" × 3.75" × 3.5" (H × W × D) |
| Center Speaker Dimensions | 5" × 6.625" × 3" (H × W × D) |
| Subwoofer Dimensions | 11.8" × 11.75" × 14.5" (H × W × D) |
Select ‘2’ on the source selector switch on the subwoofer and connect the green plug of the audio input cable to the computer’s line‑out jack.
