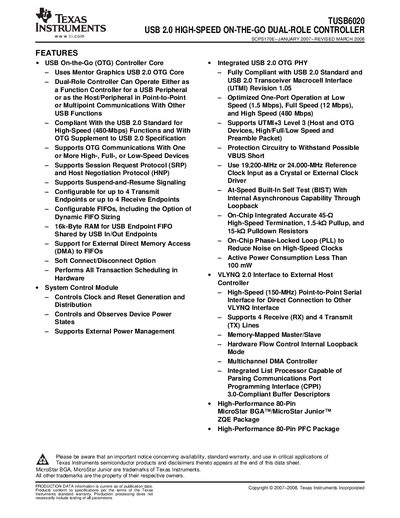

The TUSB6020 is a USB 2.0 high-speed On-the-Go dual-role controller, featuring a USB On-the-Go controller core and an integrated USB 2.0 OTG PHY. It can operate either as a function controller for a USB peripheral or as the host/peripheral in point-to-point communications. The product is fully compliant with the USB 2.0 standard and USB 2.0 transceiver macrocell interface, supporting optimized one-port operation at low speed (1.5 Mbps), full speed (12 Mbps), and high speed (480 Mbps). It also supports the USB 2.0 supplement to OTG specification, with protection circuitry to withstand possible VBUS short, support for session request protocol (SRP) and host negotiation protocol (HNP), suspend-and-resume signaling, built-in self-test (BIST), and configurable FIFOs.
The TUSB6020 is a USB 2.0 high‑speed On‑The‑Go (OTG) dual‑role controller that can operate as either a function controller for a peripheral or as a host in point‑to‑point or multipoint configurations. It integrates a USB 2.0 PHY, supports low‑speed (1.5 Mbps), full‑speed (12 Mbps) and high‑speed (480 Mbps) operation, and provides a VLYNQ serial interface for low‑pin‑count, high‑speed connections.
Key specifications include supply voltages of 1.5 V, 1.8 V and 3.3 V, a typical operating temperature range of 0 °C to 70 °C, 16 kB of endpoint RAM, support for up to four receive and four transmit VLYNQ lines, and availability in MicroStar BGA (ZQE) and TQFP (PFC) packages.
| Supply voltage (VDD15) typical | 1.5 V ± 10 % |
|---|---|
| Operating temperature range | 0 °C to 70 °C |
| Endpoint RAM size | 16 kB |
The TUSB6020 is rated for operation up to 70 °C.
