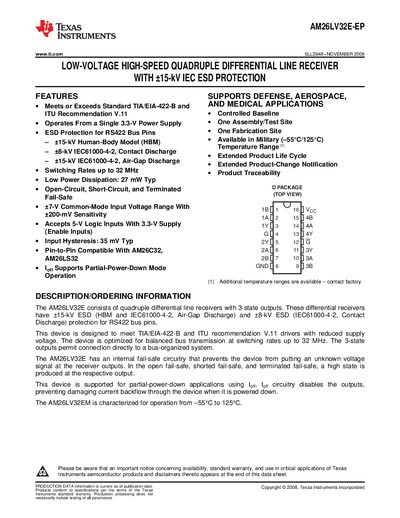

The AM26LV32E is a low-voltage high-speed quadruple differential line receiver with ±15 kV IEC ESD protection from Texas Instruments. It meets or exceeds TIA/EIA-422-B standard and ITU Recommendation V.11, has a single-chip package, and is powered by a single 3.3-V supply. It supports a working temperature range of -55°C to 125°C and supports partial power-down mode operation.
The AM26LV32E‑EP is a low‑voltage, high‑speed quadruple differential line receiver with 3‑state outputs. It meets TIA/EIA‑422‑B and ITU‑V.11 standards, offers up to 32 MHz switching rates, and includes +15 kV HBM ESD protection for RS‑422 bus pins.
Key features include a supply voltage range of 3.3‑3.6 V, 27 mW typical power dissipation, 35 mV input hysteresis, and a typical propagation delay of 26 ns. The device is available in an active‑SOIC package (AM26LV32EMDREP) and is qualified for operation from –55 °C to 125 °C.
| Supply voltage range | 3.3 V – 3.6 V |
|---|---|
| Switching rate | up to 32 MHz |
| Power dissipation | 27 mW typ |
| Propagation delay (low‑to‑high) | 26 ns typ |
| Input hysteresis | 35 mV typ |
| Operating temperature range | –55 °C to 125 °C |
| Common‑mode input voltage range | 47 V |
It is specified for operation from –55 °C to 125 °C.
The device can switch at frequencies up to 32 MHz.
Typical propagation delay is 26 ns.
The recommended supply voltage is between 3.3 V and 3.6 V.
