This is a low-power, high-gain amplifier that can be used in applications that require high gain and high output current.

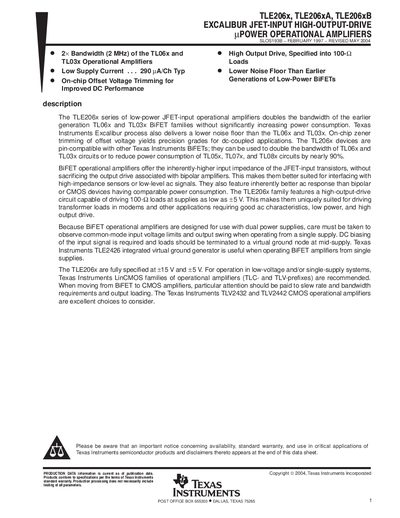

The TLE206x family of low‑power JFET‑input operational amplifiers provides high output drive and bandwidth up to 2 MHz while maintaining low supply current. The devices are pin‑compatible with earlier TI BiFET families and are suited for high‑impedance sensor interfaces and transformer‑load applications.
The datasheet details absolute maximum ratings, recommended operating conditions, electrical characteristics for various package types (D, FK, J, JG, P, PW, U, W) and the available device options (TLE2061, TLE2062, TLE2064 with A/B variants). It also includes the standard TI warranty and availability notice.
| Supply voltage (Voc+) | +3.5 V to +18 V (C suffix) |
|---|---|
| Maximum supply voltage (Voc‑) | -16 V to -45 V |
| Input offset voltage (typical) | 25 mV |
| Package thermal impedance – D (8‑pin) | 97.1 °C/W |
Typical input offset voltage is 25 mV for the TLE2061AC version.
