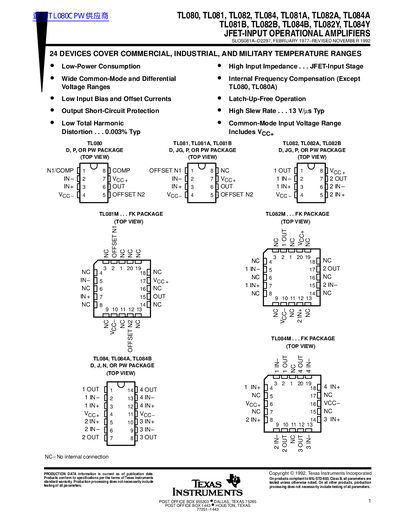

This data sheet is about TL080, TL081, TL082, TL084, TL081A, TL082A, TL084A TL081B, TL082B, TL084B, TL082Y, TL084Y JFET-INPUT OPERATIONAL AMPLIFIERS.
The TL08_ family of JFET‑input operational amplifiers from Texas Instruments provides low‑power consumption, wide common‑mode ranges, low input bias and offset currents, and high slew rates. Variants cover commercial, industrial and military temperature ranges and are offered in multiple package styles such as DIP, PLCC, and surface‑mount.
The document lists absolute maximum ratings, electrical characteristics, typical application circuits, and recommended operating conditions for each device type. It also includes production data, package dimensions, and a notice on product warranties and critical‑application usage.
| Slew rate (typical) | 13 V/µs |
|---|---|
| Total harmonic distortion (THD) | 0.003 % |
| Unity‑gain bandwidth | 3 MHz |
The typical slew rate is 13 V/µs.
TL084Y is specified for –40 °C to 85 °C operation.
The THD is specified as 0.003 % (typ).
