KM-23YD YELLOW is a green LED lamp with SOT-23 package, low power consumption, long life and RoHS compliance.

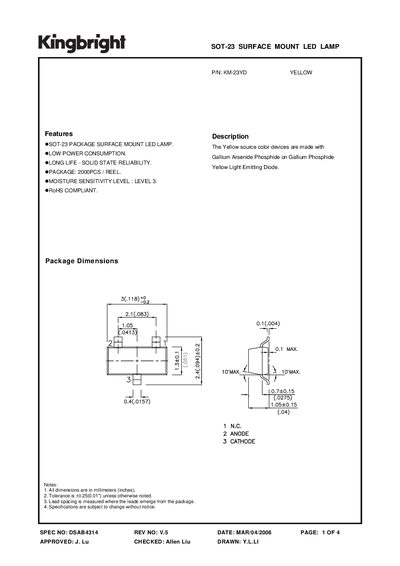

The KM-23YD is a yellow SOT‑23 surface‑mount LED lamp featuring low power consumption, long life solid‑state reliability, and RoHS compliance. It is supplied in reels of 2000 pieces and includes package dimensions and lead spacing details.
The datasheet provides electrical and optical characteristics such as a forward voltage of 2.5 V at 20 mA, peak wavelength of 590 nm, luminous intensity tolerance of ±15 %, and maximum power dissipation of 105 mW. It also includes a reflow soldering profile recommending a peak temperature of 245 °C (±5 °C) with a maximum of 260 °C.
| Peak Wavelength | 590 nm |
|---|---|
| Luminous Intensity Tolerance | ±15 % |
| Power Dissipation (max) | 105 mW |
| DC Forward Current (max) | 30 mA |
| Reverse Voltage | 5 V |
| Operating Temperature Range | -40 °C to +85 °C |
| Capacitance (1 MHz, 0 V) | 20 pF |
| Package Type | SOT‑23 |
The recommended reflow temperature is 245 °C ± 5 °C, with a maximum soldering temperature of 260 °C.
Luminous intensity is specified with a tolerance of ±15 %.
