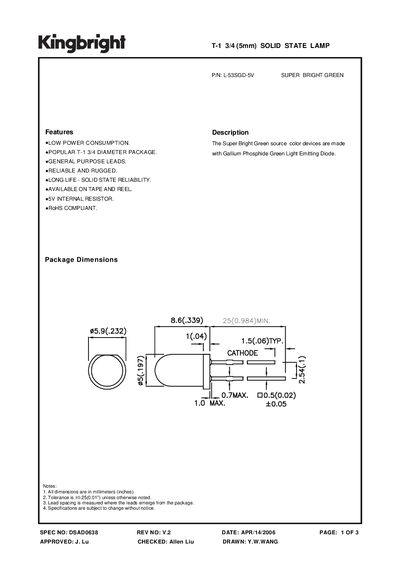

This document is a specification sheet for L-53SGD-5V SUPER BRIGHT GREEN, including product size, color, current, power, etc.
The Kingbright T-1 3/4 (5mm) Super Bright Green LED is a low‑power, high‑reliability solid‑state lamp available in tape and reel formats. It features a 5 V internal resistor, RoHS compliance, and a compact 3/4‑inch package.
The datasheet provides detailed electrical and optical characteristics, including peak wavelength, forward voltage, and luminous intensity, as well as mechanical dimensions, temperature ranges, and recommended soldering conditions.
| Peak Wavelength | 565 nm |
|---|---|
| Spectral Line Half‑width | 30 nm |
| Forward Current | 11.5‑17.5 mA |
| Reverse Current | 10 µA |
| Power Dissipation | 85 mW |
| Forward Voltage | 6 V |
| Reverse Voltage | 5 V |
| Operating Temperature | -40 °C to +70 °C |
| Storage Temperature | -40 °C to +85 °C |
The forward voltage is 6 V.
It operates from –40 °C up to +70 °C.
The peak wavelength is 565 nm.
