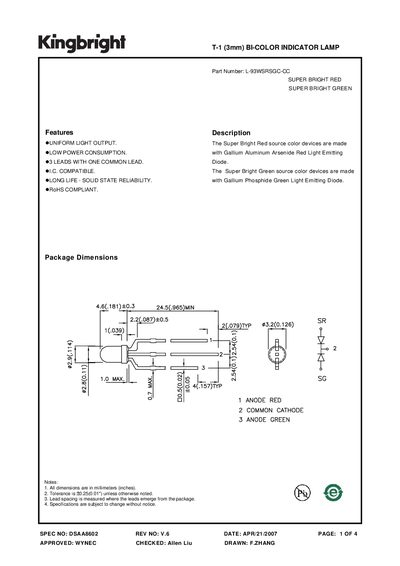

This document is a L-93WSRSGC-CC datasheet, which introduces the product's features and characteristics, including color, brightness, size, current, etc.
The Kingbright T-1 (3 mm) Bi‑Color Indicator Lamp is a dual‑color LED with a common cathode configuration. It offers uniform light output, low power consumption and long solid‑state reliability. The device is RoHS compliant and available in super‑bright red (GaAlAs) and green (GaP) versions.
The datasheet provides package dimensions, optical and electrical parameters, absolute maximum ratings, and derating curves. It also includes a selection guide with luminous intensity, forward voltage, reverse current and temperature performance data to aid designers in choosing the appropriate part for their applications.
| Typical Forward Voltage (Red) | 1.85 V @ 20 mA |
|---|---|
| Maximum Reverse Current (Red) | 10 µA @ 5 V |
| Maximum Reverse Current (Green) | 10 µA @ 5 V |
| Operating Temperature Range | -40 °C to +85 °C |
The typical forward voltage for the red LED is 1.85 V at 20 mA.
The maximum reverse current for the green LED is 10 µA when the reverse voltage is 5 V.
The lamp operates from –40 °C up to +85 °C.
