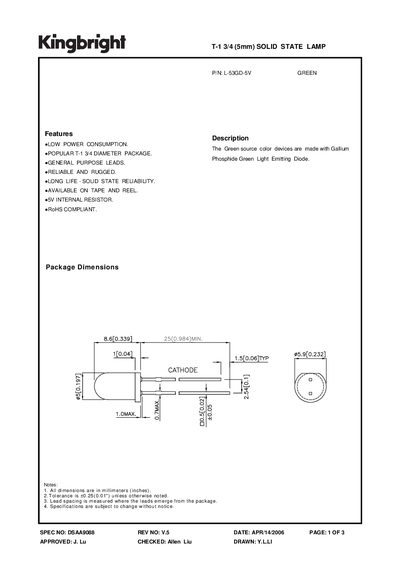

This document describes a T-1 3/4 (5mm) solid state lamp with features such as low power consumption, reliability, and ruggedness. It is made with a gallium phosphide green light emitting diode, providing long life and solid state reliability. The product is RoHS compliant.
The T-1 3/4 (5mm) solid state lamp is a green LED device built with Gallium Phosphide. It offers low power consumption, long life, and RoHS compliance, and is available on tape and reel.
Key specifications include a forward voltage of 6 V, reverse voltage of 5 V, power dissipation of 85 mW, and an operating temperature range of –40 °C to +70 °C. Optical data show a peak wavelength of 565 nm, dominant wavelength of 568 nm, and a forward current range of 11.5‑17.5 mA.
| Forward Voltage | 6 V |
|---|---|
| Reverse Voltage | 5 V |
| Power Dissipation | 85 mW |
| Operating Temperature | -40 °C to +70 °C |
| Storage Temperature | -40 °C to +85 °C |
| Forward Current | 11.5‑17.5 mA |
| Peak Wavelength | 565 nm |
| Dominant Wavelength | 568 nm |
| Spectral Line Half‑width | 30 nm |
The forward voltage is 6 V.
It operates from –40 °C to +70 °C.
The forward current ranges from 11.5 mA to 17.5 mA.
The peak wavelength is 565 nm.
