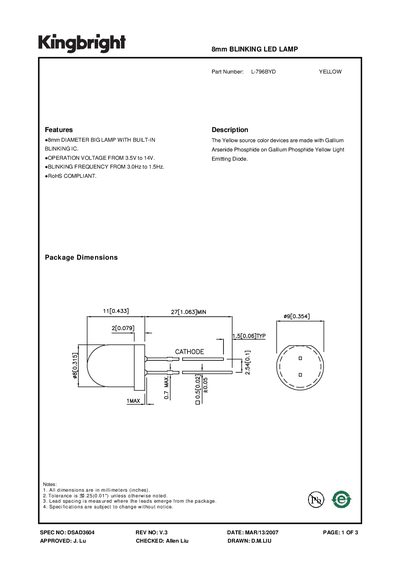

This document is the specification sheet of 8mm LED lamp, including product model, appearance, size, electrical characteristics, optical characteristics and so on.
The L-796BYD is an 8 mm diameter LED lamp with a built‑in blinking IC, available in a yellow color. It is designed for applications requiring a visible blinking indicator with a compact package.
Key specifications include an operating voltage range of 3.5 V to 14 V, a blinking frequency from 1.5 Hz to 3 Hz, and compliance with RoHS. Mechanical dimensions, electrical limits, and optical characteristics such as peak wavelength are detailed in the sheet.
| Operating Voltage | 3.5 V to 14 V |
|---|---|
| Forward Voltage (max) | 14 V |
| Forward Current (typ) | 22 mA |
| Supply Current (3.5 V) | 8 mA |
| Supply Current (14 V) | 44 mA |
| Blink Frequency | 1.5 Hz to 3 Hz |
| Power Dissipation | 310 mW |
| Operating Temperature | -40 °C to +70 °C |
| Storage Temperature | -40 °C to +85 °C |
| Peak Wavelength | 590 nm |
| Dominant Wavelength | 588 nm |
| Spectral Line Half‑width | 35 nm |
The lamp operates from 3.5 V up to 14 V.
It can blink between 1.5 Hz and 3 Hz.
The device can be stored from –40 °C to +85 °C.
