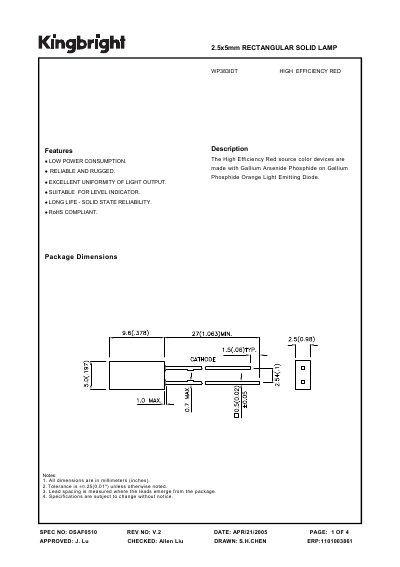

This document describes a 2.5x5mm rectangular solid lamp with features such as low power consumption, reliability, excellent uniformity of light output, suitable for level indicators, and long life solid-state reliability.
The WP383IDT is a high‑efficiency red LED designed for level indicators and other low‑power, high‑reliability applications. It features a compact 2.5 × 5 mm rectangular package, low power consumption, excellent uniformity of light output, and RoHS compliance.
Key specifications include a forward voltage of 2.0‑2.5 V at 20 mA, peak forward current of 160 mA, luminous intensity of 3‑5 mcd at 10 mA, peak wavelength around 627 nm, and an operating temperature range of –40 °C to +85 °C. Detailed packaging and sorting tolerances are also provided.
| Package size | 2.5 × 5 mm |
|---|---|
| Peak forward current | 160 mA |
| Power dissipation | 105 mW |
| Operating temperature range | -40 °C to +85 °C |
| Maximum reverse voltage | 5 V |
Yes, the WP383IDT LED is RoHS compliant.
The maximum reverse voltage is 5 V.
