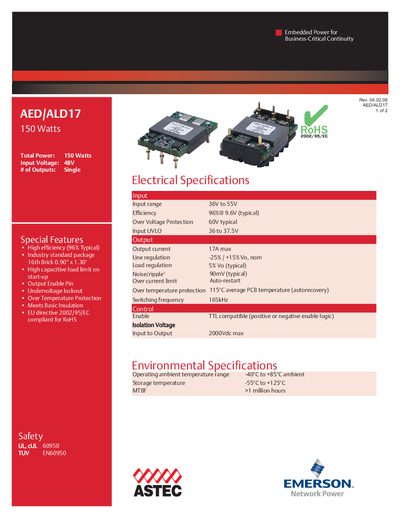

AED/ALD17 150 Watts is a 150-watt power module with an input voltage of 48V and an output current of 17A. It has high efficiency, high reliability and high integration.
The AED/ALD17 is a single‑output embedded power solution designed for business‑critical continuity. It operates from a 36‑55 V input range and delivers a nominal 9.6 V output at up to 17 A, achieving typical efficiencies of 96 %.
The module meets UL, cCUL 60950 and TUV EN60950 safety standards, operates from –40 °C to +85 °C, and is RoHS compliant. Mechanical drawings, ordering options, and detailed electrical specifications are provided for system designers.
| Total Power | 150 Watts |
|---|---|
| Input Voltage Range | 36 V to 55 V |
| Output Current | 17 A max |
| Efficiency | 96 % typical |
| Over Voltage Protection | 60 V typical |
| Input UVLO | 36 V to 37.5 V |
| Switching Frequency | 165 kHz |
| Operating Temperature Range | -40 °C to +85 °C |
| Storage Temperature Range | -55 °C to +125 °C |
| MTBF | >1 million hours |
| Safety Certifications | UL, cCUL 60950; TUV EN60950 |
| Input‑to‑Output Voltage Rating | 2000 Vdc max |
The module accepts an input voltage from 36 V to 55 V.
Typical efficiency is 96 % at a 9.6 V output.
It complies with UL, cCUL 60950 and TUV EN60950 safety standards.
It operates from –40 °C up to +85 °C.
