This document is the L-56BSRD-B super bright red LED lamp specification, which introduces the product's characteristics, features, parameters, etc.

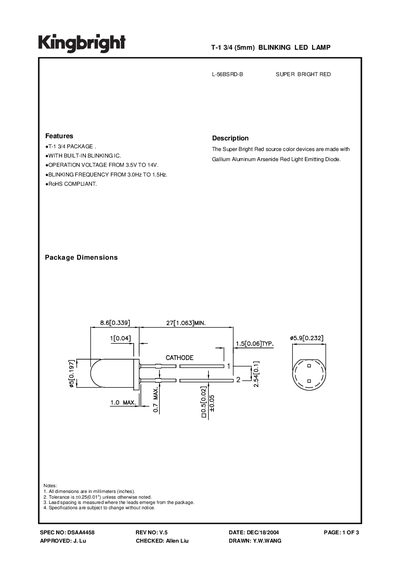

The L-56BSRD-B is a 5 mm super‑bright red LED lamp that incorporates a built‑in blinking IC. It operates from 3.5 V to 14 V, blinks at 1.5 Hz to 3 Hz, and meets RoHS requirements. Package dimensions and lead spacing are specified in millimetres.
Electrical and optical characteristics include a typical forward voltage of 3.5 V, forward current of 8 mA, supply current of 8 mA at 3.5 V, and a blinking frequency of 3 Hz. Absolute maximum ratings list a power dissipation of 310 mW, reverse voltage of 0.5 V, and operating temperature range of –40 °C to +70 °C.
| Operating Temperature Range | -40°C to +70°C |
|---|---|
| Power Dissipation | 310 mW |
It operates from 3.5 V to 14 V.
The blinking frequency ranges from 1.5 Hz to 3 Hz.
The device can dissipate up to 310 mW.
