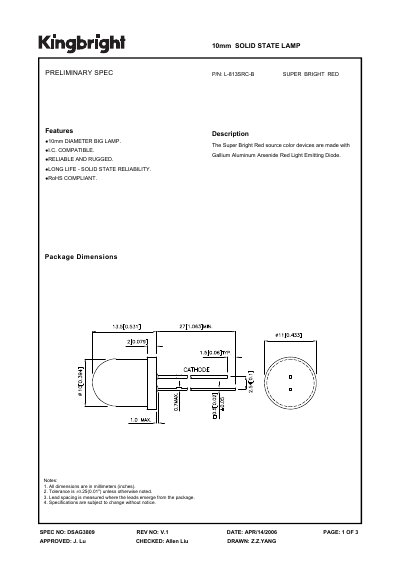

The L-813SRC-B Super Bright Red LED is a 10 mm solid‑state lamp featuring a large diameter package, RoHS compliance and reliable rugged construction. The document lists package dimensions, lead spacing and mechanical tolerances for the device.
Electrical and optical characteristics are detailed, including peak wavelength, forward voltage, capacitance, and power dissipation. Absolute maximum ratings and recommended operating conditions such as temperature range and soldering parameters are also provided.
| Package type | 10 mm solid‑state lamp |
|---|---|
| Peak wavelength | 660 nm (IF=20 mA) |
| Dominant wavelength | 640 nm (IF=20 mA) |
| Spectral line half‑width | 20 nm (IF=20 mA) |
| Capacitance | 45 pF (1 MHz) |
| Forward voltage (typical) | 1.85 V (IF=20 mA) |
| Reverse current | 10 µA (VR=5 V) |
| Power dissipation | 75 mW |
| Continuous forward current | 30 mA |
| Peak forward current | 155 mA (1/10 duty, 0.1 ms pulse) |
| Reverse voltage | 5 V |
| Operating temperature range | -40 °C to +85 °C |
| Lead solder temperature | 260 °C for 3 s (and 5 s) |
The peak wavelength is 660 nm when driven at 20 mA.
The typical forward voltage is 1.85 V at 20 mA.
The continuous forward current rating is 30 mA, with a peak forward current of 155 mA for 0.1 ms pulses.
It can operate from –40 °C up to +85 °C.
