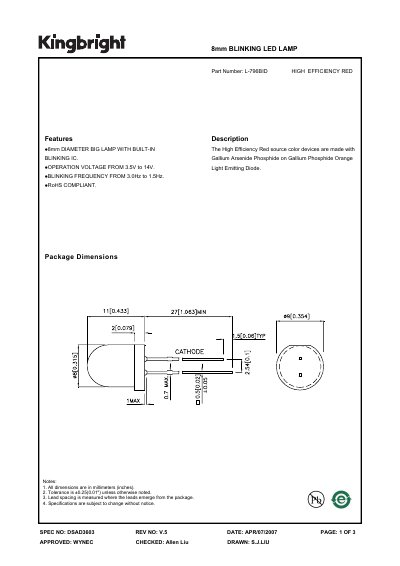

This document describes the package dimensions, features, electrical/optical characteristics, and absolute maximum ratings of the high efficiency red blinking LED lamp.
The L-796BID is a high‑efficiency red LED (GaAsP/GaP) in an 8 mm package that includes a built‑in blinking integrated circuit. It operates over a wide voltage range (3.5 V – 14 V) and provides a blinking frequency between 1.5 Hz and 3.0 Hz. The device meets RoHS requirements.
Key optical and electrical parameters are listed, including a peak wavelength of 627 nm, dominant wavelength of 625 nm, and a spectral half‑width of 45 nm. Electrical ratings cover forward voltage, reverse voltage, supply currents at the two voltage extremes, and power dissipation of 310 mW. The LED is rated for operation from –40 °C to +70 °C and storage down to –40 °C.
| Diameter | 8 mm |
|---|---|
| Built‑in blinking IC | Yes |
| Operating voltage | 3.5 V – 14 V |
| Blinking frequency | 1.5 Hz – 3.0 Hz |
| RoHS compliant | Yes |
| Forward voltage (typical) | 5 V |
| Reverse voltage | 0.5 V |
| Power dissipation | 310 mW |
| Operating temperature | -40 °C to +70 °C |
It operates from 3.5 V up to 14 V.
The LED blinks between 1.5 Hz and 3.0 Hz.
Yes, the device is RoHS compliant.
