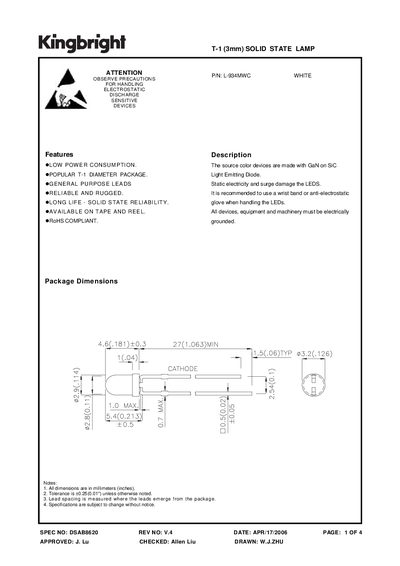

The document describes a white T-1 (3mm) solid state lamp made with GaN on SiC light-emitting diodes. It features low power consumption, reliability, and long life, making it suitable for general applications.
The Kingbright T-1 (3mm) solid‑state lamp (part number L‑934MWC) is a low‑power, general‑purpose LED designed for reliable, rugged use. It is available on tape and reel, RoHS compliant, and offers long life typical of solid‑state devices.
The datasheet provides detailed electrical characteristics such as forward voltage, reverse current, and power dissipation, as well as optical data like chromaticity coordinates and luminous intensity. Mechanical details include package dimensions and lead spacing, and absolute maximum ratings define safe operating limits.
| Forward Voltage (typ, 20 mA) | 3.8 V |
|---|---|
| Reverse Current (max) | 10 µA |
| Power Dissipation | 105 mW |
| DC Forward Current (max) | 30 mA |
| Peak Forward Current (pulse) | 150 mA |
| Reverse Voltage | 5 V |
| Operating Temperature Range | -40 °C to +85 °C |
| Lead Solder Temperature (3 s) | 260 °C |
| Chromaticity Coordinate X | 0.33 |
| Chromaticity Coordinate Y | 0.34 |
| Capacitance | 100 pF |
Use a wrist band or anti‑electrostatic glove and ensure all equipment is electrically grounded when handling the LEDs.
Yes, the device is listed as RoHS compliant.
The DC forward current rating is 30 mA, with a peak forward current of 150 mA for pulsed operation.
The lamp can operate and be stored from –40 °C up to +85 °C.
