The document provides military ordering information, marking information, performance characteristics, dimensions, and ordering information for several models of tantalum capacitors produced by KEMET Electronics Corporation.

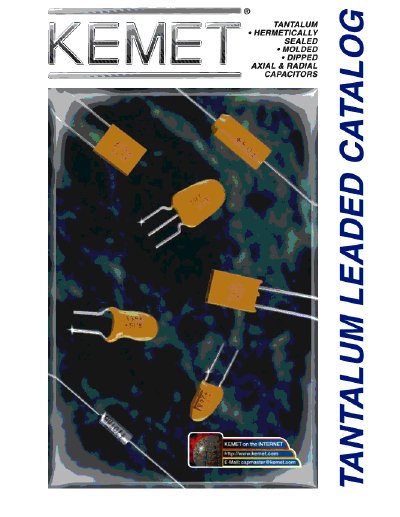

The KEMET catalog lists a wide range of hermetically sealed axial tantalum capacitors built to MIL‑C‑39003 specifications. It includes performance characteristics, dimensions, ordering details, part‑number references and environmental test information for each series.
The document provides military ordering and marking data, failure‑rate classifications, packaging options, and application notes for solid‑tantalum capacitors used in high‑humidity and rugged environments.
| Capacitance range | .0023‑1200 µF |
|---|---|
| Voltage rating range | 6‑125 V |
| Capacitance tolerance options | ±5 %, ±10 %, ±20 % |
| Failure‑rate level (S) | 0.001 % per 1000 hrs |
| Lead material | Solder‑coated nickel |
The capacitors cover a range from .0023 µF up to 1200 µF.
They are rated for working voltages between 6 V and 125 V.
Standard tolerance options are ±5 %, ±10 % and ±20 %.
The catalog lists a failure‑rate level of S, which is 0.001 % per 1000 hours.
