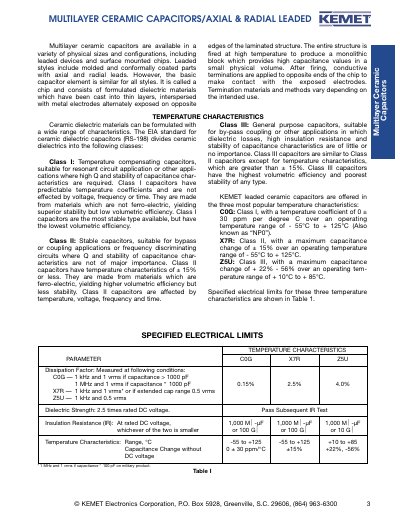

This document details the characteristics of multilayer ceramic capacitors, including physical size, configuration, and temperature characteristics.
This document provides an overview of KEMET’s multilayer ceramic capacitors with axial and radial leads. It describes the construction of the capacitors, the dielectric classes (C0G, X7R, Z5U), and the electrical limits for each class.
The datasheet also includes dimensional tables, lead spacing information, and packaging details such as tape‑and‑reel and bulk configurations. Ordering information, part‑number coding, and marking conventions are presented for easy selection of the appropriate part.
| C0G temperature coefficient | 0 ± 30 ppm/°C |
|---|---|
| C0G temperature range | -55°C to +125°C |
| C0G dissipation factor (max) | 0.15% |
| Dielectric strength | 2.5 × rated DC voltage |
The C0G dielectric is rated from –55 °C to +125 °C.
Lead spacing is given as 0.100" ± 0.030" for 0.100" spacing and 0.200" ± 0.030" for 0.200" spacing.
