This is a technical specification for a green light emitting diode. The main features include: 0.8 inch digit height, low current operation, excellent character appearance, IC compatible, mechanically rugged, gray face, white segment, 200PCS/reel package, level 4 moisture sensitivity and RoHS compliance.

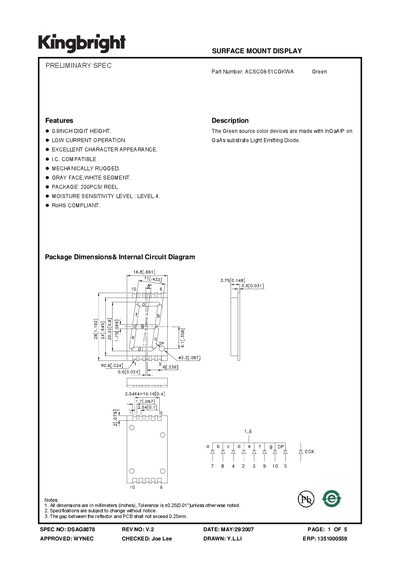

The ACSC08-51CGKWA is a green surface‑mount LED display module from Kingbright. It features a 0.8 inch digit height, low‑current operation, excellent character appearance, and a mechanically rugged design. The device is RoHS compliant and supplied in reels of 200 pieces.
The datasheet provides detailed electrical and optical characteristics such as a peak wavelength of 574 nm, forward voltage of 2.1 V at 20 mA, and a maximum power dissipation of 75 mW. It also includes a derating curve, recommended reflow soldering profile, tape dimensions, and packaging/label specifications.
| Digit Height | 0.8 inch |
|---|---|
| Color | Green |
| Package | 200 pcs/reel |
| Moisture Sensitivity Level | Level 4 |
| RoHS Compliance | Yes |
| Peak Wavelength | 574 nm |
| Forward Voltage (20 mA) | 2.1 V |
| Reverse Current (5 V) | 10 µA |
| Power Dissipation | 75 mW |
| DC Forward Current | 30 mA |
| Operating Temperature Range | -40 °C to +85 °C |
The forward voltage is 2.1 V at 20 mA.
The peak wavelength is 574 nm.
The recommended reflow temperature is 245 °C ±5 °C.
Each reel contains 200 pieces.
