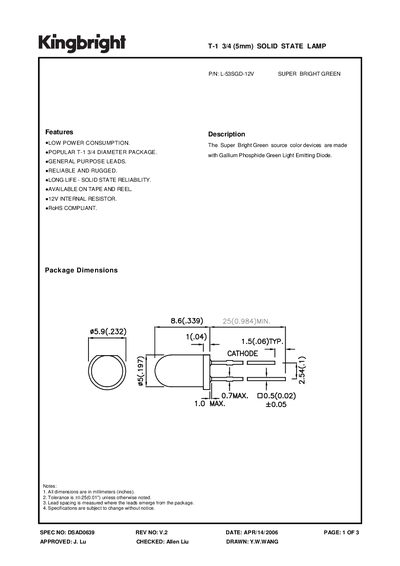

This document describes the dimensions and characteristics of the L-53SGD-12V Super Bright Green Light Emitting Diode. The product features low power consumption, reliability, ruggedness, and long life.
The Kingbright L-53SGD-12V Super Bright Green LED is a T‑1 3/4 (5 mm) solid‑state lamp featuring low power consumption, long life, and RoHS compliance. It is supplied in tape and reel formats and includes an internal 12 V resistor.
The document provides package dimensions, electrical and optical characteristics, and absolute maximum ratings, including peak wavelength, forward current, power dissipation, and temperature limits.
| Peak Wavelength | 565 nm |
|---|---|
| Forward Current | 8.5‑11.5 mA |
| Reverse Current | 10 µA |
| Power Dissipation | 120 mW |
| Forward Voltage | 1.4 V |
| Reverse Voltage | 5 V |
| Operating Temperature | -40 °C to +70 °C |
| Storage Temperature | -40 °C to +85 °C |
| Lead Solder Temperature (3 s) | 260 °C |
The peak wavelength is 565 nm.
The forward current is specified as 8.5 mA to 11.5 mA.
The device operates from –40 °C up to +70 °C.
Yes, the lamp is RoHS compliant.
