The L-813SRD-B SUPER BRIGHT RED is a 10mm red LED lamp. It supports IC compatibility, is reliable and rugged, and is a long life, solid state reliable product that meets RoHS standards.

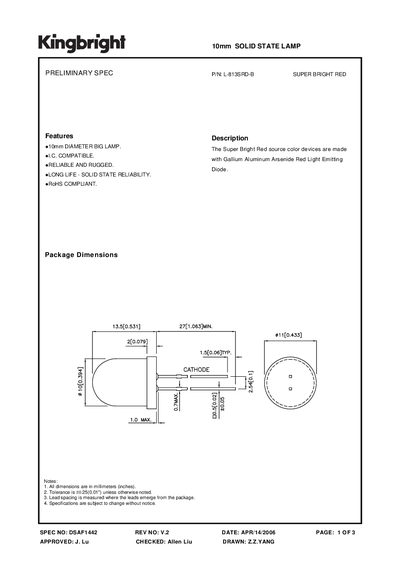

The Kingbright L-813SRD‑B is a 10 mm solid‑state lamp that emits a super‑bright red color using a GaAlAs LED. The datasheet provides package dimensions, electrical and optical characteristics, and absolute maximum ratings for designers.
Key sections include a preliminary spec sheet, a selection guide with viewing angle and luminous intensity data, detailed electrical/optical parameters such as forward voltage and peak wavelength, and graphs of relative radiant intensity and temperature derating curves.
| Peak Wavelength | 660 nm |
|---|---|
| Dominant Wavelength | 640 nm |
| Forward Voltage (typical, 20 mA) | 1.85 V |
| Reverse Current (5 V) | 10 µA |
| Capacitance | 45 pF |
| Power Dissipation | 100 mW |
| DC Forward Current | 30 mA |
| Operating Temperature Range | -40 °C to +85 °C |
The typical forward voltage is 1.85 V at a forward current of 20 mA.
The peak wavelength is 660 nm.
The device can dissipate up to 100 mW.
The lamp operates from –40 °C up to +85 °C.
