This product is a red and green LED lamp with low power consumption, wide viewing angle, and various colors and lens types.

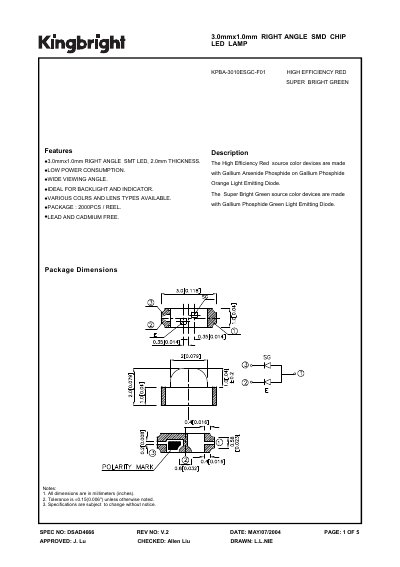

The KPBA-3010ESGC-F01 LED lamp is a right‑angle surface‑mount device designed for backlight and indicator applications. It is offered in high‑efficiency red (GaAsP/GaP) and super‑bright green (GaP) versions, with a compact 3.0 mm × 1.0 mm package and 2.0 mm thickness.
Key specifications include a peak wavelength of 627 nm (red) or 565 nm (green), forward voltage of 2.0 V (red) / 2.2 V (green) at 20 mA, and a wide 12° viewing angle. The device is lead‑ and cadmium‑free, packaged at 2000 pieces per reel, and rated for operation from –40 °C to +85 °C.
| Package quantity | 2000 pcs / reel |
|---|---|
| Reverse current | 10 µA |
| Operating temperature range | -40 °C to +85 °C |
The LED lamp is supplied in reels of 2000 pieces each.
