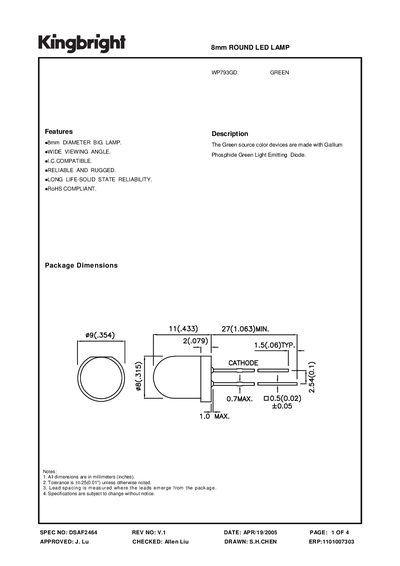

This document describes the dimensions, features, and characteristics of a green LED product, including a 8mm diameter big lamp, wide viewing angle, I.C. compatibility, reliable and rugged design, long life-solid state reliability, and RoHS compliance.
The WP793GD is an 8 mm round LED lamp from Kingbright, featuring a green phosphide LED with a wide viewing angle and RoHS compliance. It is designed for reliable, long‑life solid‑state lighting applications.
The datasheet lists key electrical and optical characteristics such as peak wavelength, forward voltage, reverse current, and power dissipation, as well as mechanical dimensions, temperature range, and packaging specifications for bulk handling.
| Peak Wavelength | 565 nm |
|---|---|
| Forward Voltage (VF) at 20 mA | 2.2 V |
| Reverse Current (IR) at 5 V | 10 µA |
| Power Dissipation | 105 mW |
| Operating Temperature Range | -40 °C to +85 °C |
The forward voltage is 2.2 V at a test current of 20 mA.
Yes, the device is RoHS compliant.
Each bag contains 200 pieces of the WP793GD LED.
