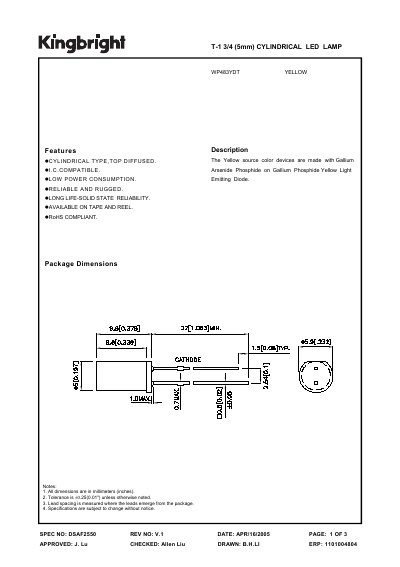

DSAF2550 T-1 3/4 (5mm) CYLINDRICAL LED LAMP is a Yellow source color LED lamp,features cylindrical,top diffused.,I.C.compatible.,low power consumption,reliable and rugged,long life-solid state reliability,available on tape and reel,RoHS compliant
The WP483YDT Yellow is a cylindrical, top‑diffused LED lamp designed for low power consumption, high reliability, and long solid‑state life. It is I.C. compatible, RoHS compliant, and available on tape and reel.
Key electrical and optical characteristics include a peak wavelength of 590 nm, forward voltage of 2.1‑2.5 V at 20 mA, and a maximum forward current of 140 mA. The device operates from –40 °C to +85 °C and meets standard absolute‑maximum ratings for power dissipation and reverse voltage.
| Peak Wavelength | 590 nm |
|---|---|
| Dominant Wavelength | 588 nm |
| Spectral Line Half‑width | 35 nm |
| Capacitance | 20 pF |
| Forward Voltage (20 mA) | 2.1‑2.5 V |
| Reverse Current (5 V) | 10 µA |
| Power Dissipation | 105 mW |
| DC Forward Current | 30 mA |
| Peak Forward Current | 140 mA |
| Reverse Voltage | 5 V |
| Operating Temperature | -40 °C to +85 °C |
| Lead Solder Temperature (3 s) | 260 °C |
| Lead Solder Temperature (5 s) | 260 °C |
The forward voltage is between 2.1 V and 2.5 V at a test current of 20 mA.
The peak wavelength is 590 nm.
The device can tolerate a reverse voltage up to 5 V.
The LED operates from –40 °C to +85 °C.
