This specification sheet provides detailed information on the KP-2012SEC SUPER BRIGHT ORANGE product, including product dimensions, power consumption, viewing angle, color, and lens type.

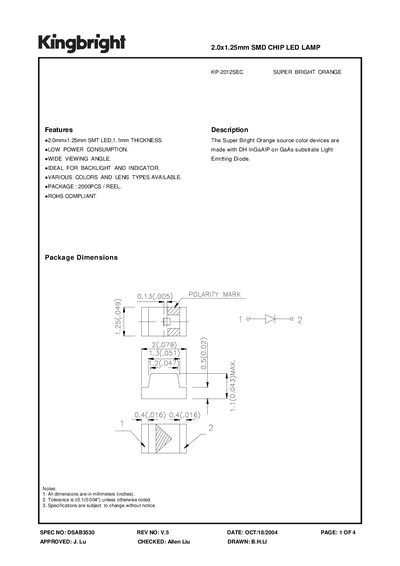

The Kingbright KP-2012SEC is a 2.0 mm × 1.25 mm surface‑mount LED lamp offering a super‑bright orange color. It features low power consumption, a wide viewing angle, and is RoHS compliant, making it suitable for backlight and indicator applications. The package is supplied in reels of 2000 pieces.
The document provides detailed optical and electrical characteristics, absolute maximum ratings, relative radiant intensity curves, and recommended reflow soldering parameters for lead‑free SMT processes. It also includes a selection guide with lens types and viewing angles.
| Package | 2000 pcs / reel |
|---|---|
| Forward Voltage (IF=20 mA) | 2.0 V – 2.5 V |
| Reverse Current (VRS=5 V) | 10 µA |
| Power Dissipation | 75 mW |
| DC Forward Current | 30 mA |
| Operating Temperature | -40 °C to +85 °C |
The forward voltage is between 2.0 V and 2.5 V at a forward current of 20 mA.
A reflow temperature of 245 °C – 260 °C is recommended, with a maximum of 260 °C.
Yes, the device is RoHS compliant.
