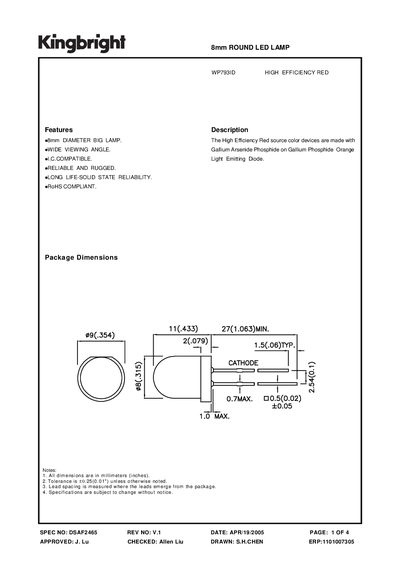

DSAF2465 is the datasheet of WP793ID HIGH EFFICIENCY RED product. This product has features like 8mm DIAMETER BIG LAMP, WIDE VIEWING ANGLE, I.C.COMPATIBLE, RELIABLE AND RUGGED, LONG LIFE-SOLID STATE RELIABILITY, RoHS COMPLIANT
The WP793ID is an 8 mm round high‑efficiency red LED lamp from Kingbright. It offers a wide viewing angle, long life solid‑state reliability, and RoHS compliance. The package dimensions are typical for 8 mm LEDs and it is supplied in 200‑piece bags.
The datasheet provides detailed optical and electrical characteristics, including peak wavelength, forward voltage, and maximum ratings, as well as derating curves and packing specifications. This information helps designers select the component for applications requiring precise red light output.
| Peak Wavelength | 627 nm |
|---|---|
| Capacitance | 15 pF |
| Forward Voltage (20 mA) | 2.0‑2.5 V |
| Reverse Current (5 V) | 10 µA |
| Power Dissipation | 105 mW |
| DC Forward Current | 30 mA |
| Reverse Voltage | 5 V |
| Operating Temperature Range | -40 °C to +85 °C |
| Packaging Quantity | 200 pcs per bag |
| RoHS Compliance | Yes |
The forward voltage is between 2.0 V and 2.5 V at 20 mA.
Each bag contains 200 pieces of the WP793ID LED.
Yes, the WP793ID LED is RoHS compliant.
