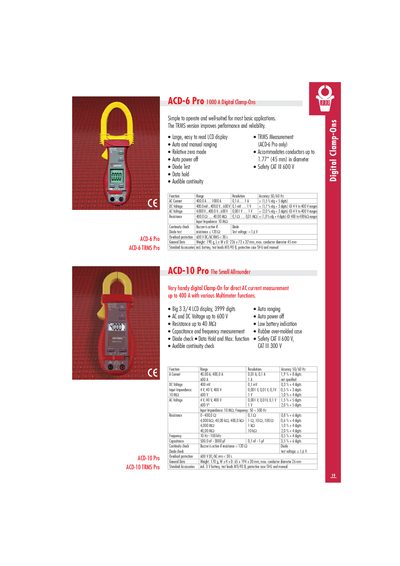

This document introduces 19 digital clamp-on meters, including ACD-10 Pro, a small and handy digital clamp-on meter for direct AC current measurement up to 400A with various multimeter functions. ACD-10 TRMS Pro and ACD-6 Pro are simple to operate and well-suited for most basic applications. The TRMS version improves performance and reliability.
The ACD-6 Pro is a digital clamp‑on multimeter designed for basic electrical measurements. It features a large, easy‑to‑read LCD, auto and manual ranging, data hold, audible continuity, and safety CAT III 600 V protection. The device can measure AC current up to 1000 A, AC/DC voltage up to 600 V, resistance up to 40 MΩ, capacitance, frequency and includes diode and continuity tests.
Standard accessories include a battery, test leads (MTL‑90 B), a protective case (SY‑U), and a manual. The unit weighs 190 g, measures 226 × 73 × 32 mm, and accepts conductors up to 45 mm in diameter.
| AC Current Range | 400 A – 1000 A |
|---|---|
| DC Voltage Range | 0.004 V – 600 V |
| AC Voltage Range | 4 V – 600 V |
| Resistance Range | 0 Ω – 40 MΩ |
| Capacitance Range | 500 nF – 3000 pF |
| Frequency Range | 10 Hz – 100 kHz |
| Input Impedance | 10 MΩ |
| Weight | 190 g |
| Maximum Conductor Diameter | 45 mm |
| Safety Category | CAT III 600 V |
The ACD-6 Pro can measure AC current up to 1000 A.
It complies with safety category CAT III 600 V.
It measures 226 × 73 × 32 mm and weighs 190 g.
